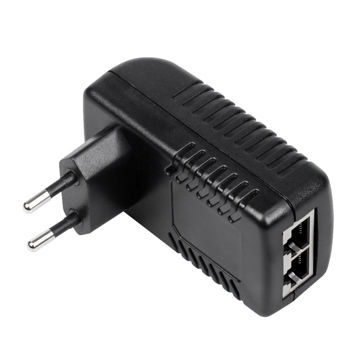

POE15(48/24W)
PoEPower supply mode：Strong donor=Power supply;Non first detection by the end of the power supply.
PoE IEEE802.3af/at Agreement：Non standard
PoE Pin：4,5(+)、7,8(-)
Data foot Dtad Pin : 1,2-TX; 3,6-RX
Port speed：10/100 Mbps
LEDIndicator light: Power,PoE Status
Network medium: 100BASE-TX: 5 types and above non shielded twisted pair, EIA/TIA-568Standard
Output power: 48V/24W; instant Max: 30W
POE08(48V/20W)
PoE power supply mode: power supply is the power supply; the power supply is not first detected by the end of the power supply.
IEEE802.3af/at PoE protocol: non - Standard
PoE feet: 4,5 (+), 7,8 (-)
Pin 1,2-TX: Dtad; 3,6-RX
Port speed: Mbps 10/100
LED indicator: PoE, Status Power
Network medium: 100BASE-TX: 5 and above non shielded twisted pair, EIA/TIA-568 standard
Output power: 48V/20W; instant Max: 24W
